Mansfield toilets have been popular in many households for over 100 years because the company makes quality pieces built to last. You can use these toilets for many years without issues, but they aren’t flawless, so a Mansfield toilet troubleshooting guide is beneficial.
Your Mansfield toilet can develop issues such as continuous running, leaking, clogging, weak flush, no flush, and ghost flushing. The handle may also fail to come back, or the tank may fail to refill. Troubleshooting these issues will uncover the causes and then choose the appropriate solutions.
Toilet problems can be frustrating, but the upside is you can address most Mansfield toilet issues yourself. You just need the right tools, follow the correct procedure, and proceed cautiously.
This post offers the causes and fixes for Mansfield toilet problems.
Mansfield Toilet Troubleshooting (Causes & Fixes)
| Problem | Cause | Recommended Fix | |
| 1. | Continuous Running | A disconnected handle Faulty flush valve Broken overflow valve A damaged flapper chain or flapper Setting the float too high | Reconnect the handle Replace the flush valve Replace the flapper Lower the water level Install a new fill valve |
| 2. | Toilet Hard to Flush | Stuck chain Too long chain Loose or worn-out handle Damaged flapper | Free the chain Shorten the chain Tighten the handle or replace it Replace the flapper |
| 3. | Mansfield Toilet Not Flushing | Low water level Broken flapper Clogs Broken or disconnected handle | Raise the water level Install a new flapper Remove clogs Reconnect the handle and tighten it |
| 4. | Ghost Flushing | Leaky seal or flapper The refill tube is too low Damaged flush valve Trapped chain The float is set too high | Replace the flapper Reposition the refill tube Replace the flush valve Release and adjust the chain Lower the float |
| 5. | Leaking | Loose screws and nuts Cracked tank or bowl Worn-out wax ring Loose refill tube Broken or disconnected supply line | Tighten the screws and nuts Seal cracks Replace the wax ring Get a new toilet |
| 6. | Flush Valve Closes Too Soon | Excess slack on the chain | Adjust the length of your toilet chain |
| 7. | The Bowl Won’t Empty | Low water level Loose replenish tube A partially clogged drain The flush valve closes prematurely Clogged holes or jets | Raise the float Remove clogs Unblock the holes or jets Adjust the chain length |
| 8. | Loud Noise as The Toilet Fills Up | High water pressure Worn-out fill valve seals | Reduce the water pressure Replace the fill valve seals |
1. Continuous Running
This is a common issue in most toilets, but although having a continuously running Mansfield toilet shouldn’t surprise doesn’t mean it’s less annoying. You can quickly decipher the cause of this problem by inspecting the tank’s interior.
A running toilet cycles off and off or runs continuously, causing water wastage if left unfixed. The problem is caused by a disconnected handle, faulty flush valve, broken overflow valve, a damaged flapper chain or flapper, and setting the float too high.
Fix
Since a running toilet occurs due to different reasons, below is a walkthrough on how to fix it.
a) Check the Water Level
If the water level inside the tank is above the recommended level (around 1/2 inch beneath the fill tube top), it is too high. Additionally, bring down the water level by loosening and retightening the float screw.
b) Reconnect the Toilet Handle
If disconnected, reattach the handle to the lift arm, then ensure the chain joins the flapper or flush valve to the arm.
c) Replace the Flapper
You can attribute running toilets to flapper issues. This component opens to let water flow into the toilet bowl when you flush, then seals once the flushing is done.
Water will let the water flow into the bowl continuously if the flapper is damaged, and the solution for this is flapper replacement. Purchase a quality replacement flapper compatible with your toilet like the Mansfield Plumbing 630-0207 Univ Flapper (View on Amazon) that’s 3 inches, easy to install, and provides an excellent fit.
Once you get the new flapper, remove the old one, then install the new one.

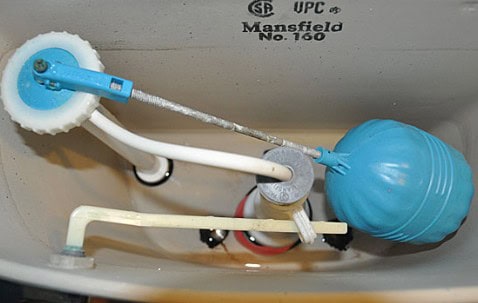

d) Replace the Flush Valve
If replacing the flapper doesn’t fix the issue, you may have to replace the whole flush valve (view on amazon). Also, clean the fill valve to remove debris or replace it.
2. Toilet Hard to Flush
Your toilet should be easy to flush, so when pulling the flush handle of your Mansfield becomes harder, you must get to the bottom of the problem. This problem can arise from a stuck or excessively long chain, a worn-out flapper, or a damaged handle.
Fix
Open the toilet tank lid, then do the following:
a) Examine the Chain
Check if the chain is stuck on something, making pushing challenging; if so, free it. Also, reduce the chain length to ensure the seal or flapper raises around 90 degrees when you flush the toilet.
b) Install a New Flapper
A worn-out or damaged flapper makes flushing difficult, so replace it. A replacement flapper is easily accessible and affordable.
Check the Handle Condition
Examine the nuts holding the handle to determine their conditions. In addition, tighten the nuts or replace the handle if irreparably damaged.
3. Mansfield Toilet Not Flushing
You are likely dealing with a clog, or the water level is too low if your Mansfield toilet stops flushing. Alternatively, the flapper could be warped or broken, or you could be dealing with a broken handle.
While toilet manufacturers strive to provide clog-free toilets, you must still be careful not to flush things you shouldn’t, like toys, menstrual products, or even using too much toilet paper. However, you must deal with clogs sometimes.
Also, flappers and toilet handles can break or wear out, causing the toilet to stop flushing.
Fix
a) Check the Water Level
Before checking the level of water inside the tank, ensure the shut-off valve is fully open because water won’t flow into the toilet tank if the valve is closed. Adjust the arm of the float arm and flush valve to raise the tank’s water level.
b) Remove Clogs
There are multiple ways of unclogging your toilet. For instance, a toilet plunger offers a simple and quick way of clearing clogs that are not far down your toilet drain.
On the other hand, use a drain snake for clogs stuck deep into your toilet drain. Alternatively, you can use chemicals that dissolve clogs, like flushed tampons.
c) Warped or Broken Flapper
A warped or broken flapper needs to be replaced.
- Stop water from entering the toilet tank.
- Remove and set aside the tank lid then empty the tank.
- Detach the chain connecting the tank lever to the flapper.
- Take out the worn-out flapper and dispose of it.
- Install the replacement flapper then connect the chain to the tank lever.
- The chain should have the right tension, so adjust its length.
- Restore water flow, test the new flapper, then close the tank lid.
d) Broken Handle
If the toilet handle is disconnected, reconnect it and tighten the bolts. Figuring out how to fix a push button isn’t easy, so if you don’t have the proper skills, pay for a plumber’s services.
4. Ghost Flushing
This phenomenon is also called phantom flush, and it entails a toilet turning on and off without a person pressing the flush button or pushing the handle. This issue commonly happens due to a leaky seal or flapper.
Ghost flushing can also happen from pushing the refill tube too low or a damaged flush valve. Other causes of phantom flush are improperly positioned or excessively long refill tube, trapped chain, or when the float is set too high.
Fix
- A decaying or cracked flapper lets water run periodically or keep flowing, so replace it to fix ghost flushing and other flapper-related issues. Replacement flapper.
- Ensure the chain isn’t caught in anything and is the correct length.
- Lower the float to make sure the tank fills up to the proper height.
- Position the refill tube to ensure it is above the overflow opening.
- Examine the flush valve and replace it if it’s in poor condition. An excellent choice for a replacement flush valve is the Mansfield Flush Valve (View on Amazon) which can accommodate every trip lever, offers a water consumption rate of 1.6 Gpf/6.0 Lpf, and comes with a locknut and spud gasket.
5. Water Leaks
You should resolve bathroom water leaks swiftly because they can cause water damage, and wastewater is a health risk. Before fixing a leak, you must locate its source.
Your Mansfield toilet can leak from the fill valve base, supply line, the seal between the bowl and tank, and the bolts connecting the bowl and tank. Also, the tank’s refill tube can loosen, thus spraying water.
Furthermore, you may be dealing with a cracked tank or bowl.
Fix
Tighten the screws and nuts, securing different parts like the bowl and tank. Also, examine different components like the wax ring, nuts, and bolts for signs of wear and tear and replace them if they have deteriorated.
Seal small cracks on your Mansfield toilet bowl or tank using a plumber’s epoxy to stop leaks. However, if you are dealing with big cracks, shop for a new tank, bowl, or the whole toilet.
6. Flush Valve Closes Too Soon
The lifting chain joining flapper and flush lever must have proper slack. The flush valve will close prematurely if the chain has excess slack because it won’t go up high enough to let all the water flow through the valve.
Fix
Adjust the length of your toilet chain to around ½” of slack.
7. The Bowl Won’t Empty
The causes of this issue are low water level, loose replenish tube, a partially clogged drain, the flush valve closing prematurely, and clogged holes or jets.
Fix
- Raise the float height so that more water can flow into the tank.
- Remove the obstructions inside the drain.
- Clean the holes or jets.
- Adjust the chain.
8. Loud Noise as The Toilet Fills Up
Your Mansfield toilet will produce a loud noise while refilling because the water pressure is high or the fill valve seals are worn out.
Fix
- Lower your home’s water pressure.
- Replace the fill valve seal.
Final Thoughts on Mansfield Toilet Troubleshooting
While your Mansfield toilet can develop various issues during its lifespan, most of these problems can be fixed through manageable DIY projects. The guide above should come in handy when faced with different problems as it offers the causes and solutions for various issues.
